TinyC for Tasmota¶

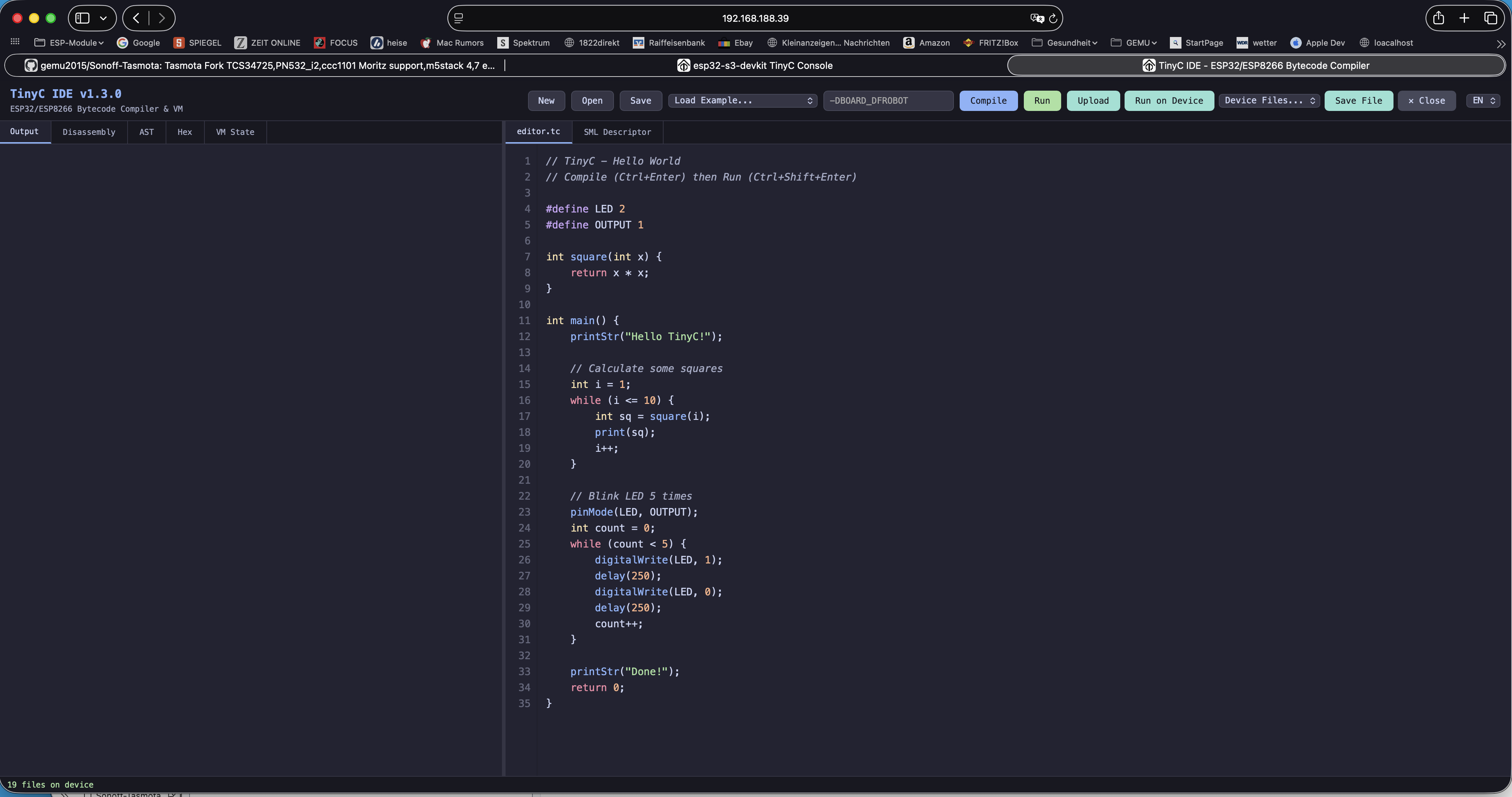

TinyC is a C-subset compiler and VM that runs on the ESP32 family (ESP32, S3, C3, C6, P4) and, with a smaller feature set, on the ESP8266 as the Tasmota driver XDRV_124. Write C in the browser IDE, compile to portable bytecode, upload and run — no firmware rebuild, no on-device compiler.
Why TinyC¶
- Portable bytecode — compile once, run the same binary on ESP32, ESP32-S3, ESP32-C3, ESP32-C6, ESP32-P4 or ESP8266. A program needs a firmware with the same or a newer syscall ABI: the firmware refuses newer bytecode at load time, and the IDE compiles for the ABI of the connected device.
- No on-device compiler — compilation happens in the browser, so no parser or code generator ships in the firmware. The interpreter itself is tiny; the whole TinyC driver (VM, system calls, web widgets, serving the IDE, hardware bridges) takes roughly 200 KB of flash — see Custom Builds for the flash budget.
- Familiar C syntax —
int,float,char[], structs, 2D arrays, function pointers, reference parameters, packedbyte[]/int16[]arrays,#includeand#if— no new language to learn. - Much faster than script interpreters — direct-threaded bytecode dispatch with superinstructions and no source re-parsing; the benchmark suite runs faster than Berry on the same chip.
- True background tasks — up to six VM slots on ESP32 (one on ESP8266), and
TaskLoop()runs in a dedicated FreeRTOS task with fulldelay()support. - Deep Tasmota integration — direct access to SML smart meters, I2C, SPI, 1-Wire, serial, display drivers, UDP multicast, MQTT, HTTP/TLS, mail and web pages.
- More than sensors — define Matter devices (Apple Home, Google Home, Alexa), talk Bluetooth LE and Bluetooth Classic, run a camera with motion and person detection, use an FTP client (e.g. a logger on a FRITZ!NAS), drive an FTDI device through the ESP32-S3's USB host, build LVGL touch UIs, and speak with the text-to-speech plugin.
Start here¶
-
Enable
USE_TINYCin your build, upload the IDE, write your first program. -
Full function reference — GPIO, I2C, SML, display, HomeKit, networking.
-
Ready-to-run programs for sensors, displays, meters, and more.
-
Screenshots of real projects running on Tasmota hardware.
-
Download pre-built firmware for testing.
-
Feature flags for trimmed or extended firmware variants.
Latest release¶
The latest test firmware, IDE bundle, plugins and docs are always on the testing release tag; every build also has its own v<version> release. What changed in each version, and which firmware a compiled program needs (the syscall ABI table), is in the changelog.
Not affiliated with TCC / TinyCC
TinyC for Tasmota is an independent project unrelated to Fabrice Bellard's Tiny C Compiler (TCC / TinyCC). The two share a similar name but are different projects with different scope: TCC is a native x86/ARM C compiler, while TinyC for Tasmota is a C-subset compiler that targets a portable bytecode VM running inside Tasmota on ESP32/ESP8266.
